Overview

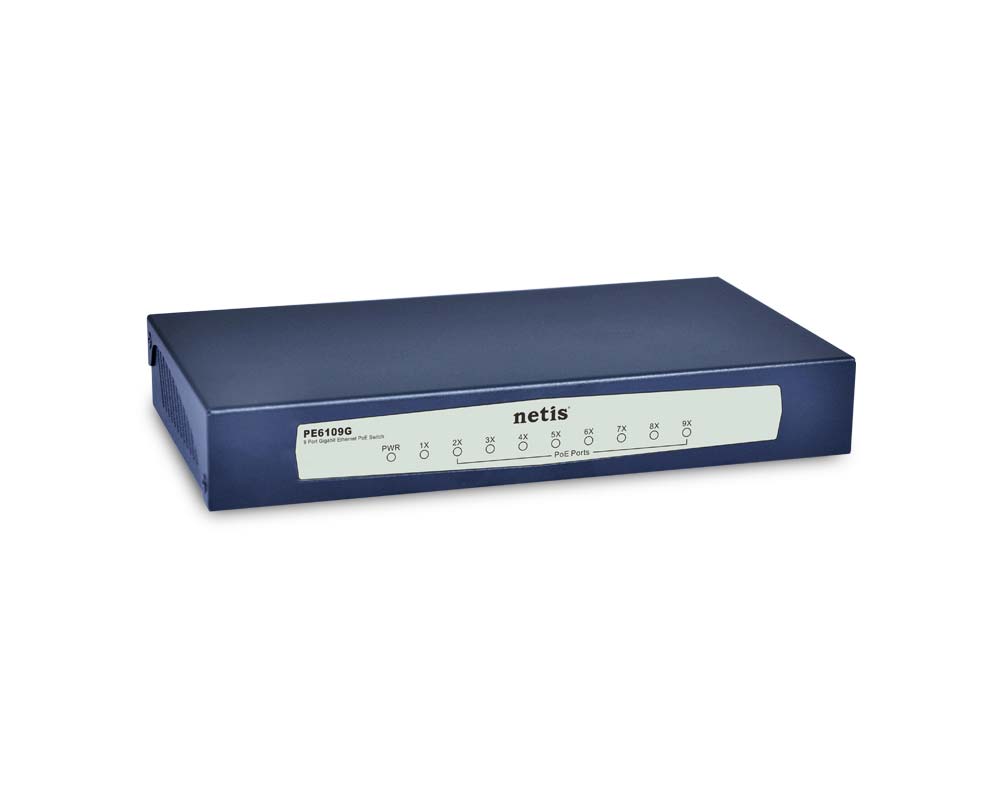

9 Port Gigabit Ethernet PoE Switch/ 8 Port PoE/ 802.3at/afThe netis PE6109G Fast Ethernet PoE Switch provides a great selection for expanding your home or office network. . It provides 9 10/100/1000Mbps RJ45 ports , port 2 to port 9 support Power over Ethernet(PoE) function.. It can automatically detect and supply power with the IEEE 802.3at/af compliant Powered Devices (PDs), like PoE APs, IP Phones,IP cameras, etc.In this case, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets. |
 |
Specification
- 9 10/100/1000Mbps Auto-Negotiation RJ45 ports, 8 PoE function
- Complies with IEEE 802.3at/af standards
- Supports PoE power up to 30W for each PoE port , 140W for all PoE ports
- Supports PoE IEEE 802. 3at/af compliant Powered Device (PD)
- IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- 18Gbps switching fabric capacity/backplane bandwidth
- Supports 8K MAC address table, MAC address auto-learning & auto-aging
- Green Ethernet technology for effective power saving
- LED indicators for simple diagnostics and management
- Plug and play ,no configuration required
- Steel case, with external power supply
Specification
| Hardware | |
| Interface | 10/100/1000Mbps RJ45 port, 8 PoE function |
| LED | PWR, 1-9 LINK |
| Power Supply | 48V |
| PoEPower | 140W |
| (Dimensions (L x W x H | 160x 100 x 32mm |
| Switching Features | |
| Standard | IEEE 802.3u 1000Base-TX, IEEE 802.3u 100BASE –TX, IEEE 802.3 10BASE –T, IEEE 802.3at/af |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Switching Fabric Capacity | 1.8Gbps |
| MAC Address Table | 8K, auto-learning & auto-aging |
| PoE | ( 30Watts (Max. each port (140Watts (Max. all ports |
| Others | |
| Certification | FCC, CE |
| Environment |
℃Operating Temperature: 0℃~40 |
| Package | PE6109G Quick Installation Guide Power Adapter Power Cord |
Application
